Waterproof, dust and corrosion-resistant LED lights (B type)

SFD-LED series

Waterproof, dust and corrosion-resistant LED lights (B type)

1. More rain all year round, humidity, salt fog heavier areas.

2. The working environment is humid, there is water vapor place.

3. Elevation of not more than 2000m.

4. The working environment contains sand dust, dust and other non-flammable dust.

5. The work environment contains weak acid, weak base and other corrosive gases.

6. Lighting for energy-saving projects and maintenance of replacement of difficult places;

7. As oil, chemicals, food, pharmaceutical, military, warehousing and other places lighting.

8. For -50 ℃ above the low-temperature environment.

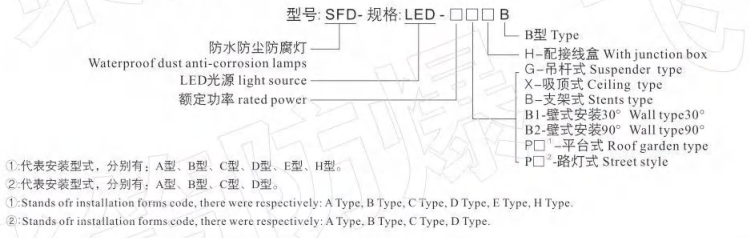

Model Implication

Features

1. Aluminum die-casting shell, the surface electrostatic spray, beautiful appearance.

2. Patented multi-cavity structure, power cavity, light cavity and wiring chamber cavity three separate.

3. High corrosion resistance of stainless steel exposed fasteners.

4. The use of borosilicate tempered glass transparent cover or polycarbonate transparent cover, fog glare design, can withstand high energy impact, heat fusion, light transmission rate of up to 90%.

5. Advanced drive power technology, wide voltage input, with constant current, open circuit protection, short circuit protection, surge protection and other functions.

6. Equipped with many international brands of LED modules, advanced light distribution technology, even and soft light, light efficiency ≥ 120lm / w, high color rendering, long life, green.

7. With air diversion structure of the cooling air duct to ensure that the LED light source life.

8. Advanced sealing technology to ensure that the protection requirements of high, humid environment normal long-term operation.

9. Emergency equipment can be equipped as required, as emergency lighting, emergency response time of not less than 45 minutes.

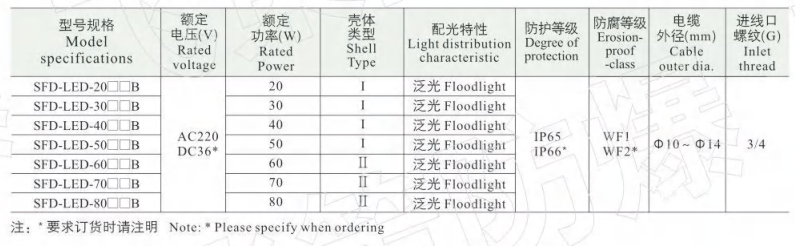

Main Technical Parameters

Order Note

1. In accordance with the specifications of the meaning of the specifications of the rules to choose one by one, and in the model specifi- cations after the addition of protective signs. Reflected as follows: "product model - code + protective mark + order quantity." Such as the need for waterproof and dustproof anti-corrosion belt drive power LED lamps 60W, hanging with the installation of junction box, the number of 20 sets, the product model specifications: "Model: SFD- Specification: LED-60GHB + IP65 + 20."

2. Refer to pages P431~P440 for the selected mounting styles and accessories.

3. If there are some special requirements, it should be pointed as ordering.
