Water dust&corrosion proof control box (full plastic enclosure)

SFK-S-系列

Water dust&corrosion proof control box (full plastic enclosure)

1. Areas with more rain, more humidity and heavier salt spray.

2. The working environment is humid and there is a place for water vapor.

3. The altitude does not exceed 2000m.

4. The working environment contains non-flammable dust such as sand and dust.

5. The working environment contains corrosive gases such as weak acids and weak bases.

6. Applicable to petroleum, chemical, food, pharmaceutical, military, warehousing and other places.

7. Operate the electromagnetic appliance remotely or indirectly control the motor in the vicinity of the controlled motor, and observe the operation of the controlled circuit through the electrical instrument and signal light.

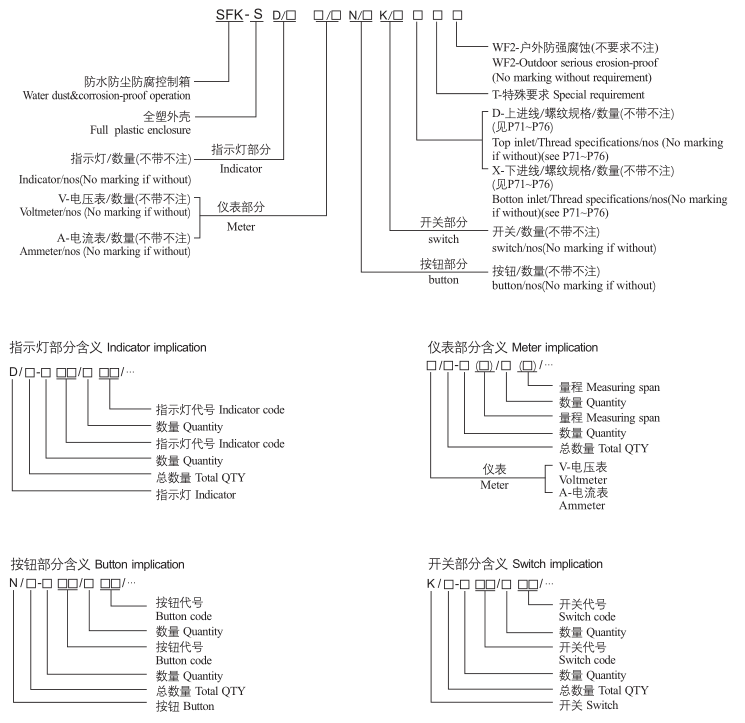

Model Implication

Features

1. The outer casing is made of glass fiber unsaturated polyester resin engineering plastic material with high strength, corrosion resistance and good thermal stability.

2. Built-in indicators, buttons, voltage, ammeter, transfer switch, potentiometer and other electrical components, and arranged in a modularn combination.

3. The transfer switch function can be selected according to user requirements and the performance is reliable.

4. Outdoor products can be equipped with rain cover according to user requirements.

5. The installation method is hanging or bridge type, and can also be customized according to user requirements. Hanging and bridge mounting can be made into the upper or lower line.

6. The product design has a curved seal structure and is equipped with a rubber sealant strip for strong protection.

7. All exposed fasteners are made of stainless steel.

Main Technical Parameters

Order Note

1. According to the model implication's rules to select regularly;

2. If there are some special requirements, it should be pointed as ordering.
