BHJ series

Explosion-proof active connector

1. Hazardous:zone 1&2;

2. Explosive atmosphere: class Ⅱ ;

3. Hazardous:zone 20、21 and 22;

4. Flammable dust atmosphere;

5. Indoor or outdoor;

6. widely using in the fields of oil, chemical industry, spaceflight, war industry and so on.

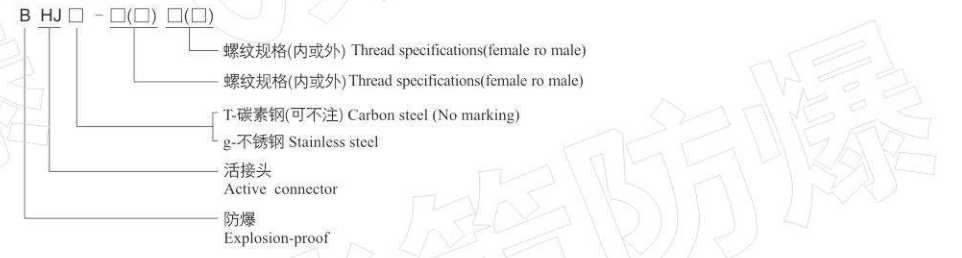

Model Implication

Features

1. The production is made of carbon steel with good quality, surface is coated with zinc, or it can be made of stainless steel;

2. The specification of thread can be made on request.

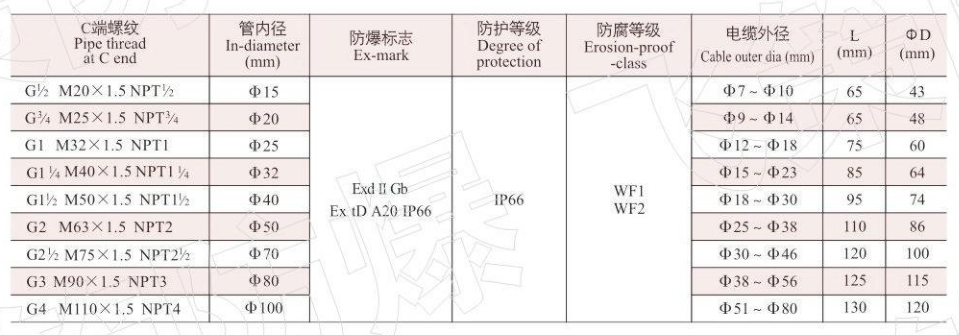

Main Technical Parameters

Order Note

1. Select one by one according to the rules in the model meaning, and add the explosion-proof mark after the model meaning. It is embodied as: “Product specification model code + anti-explosion mark”. If you need explosion-proof union, internal thread at both ends, pipe thread G , mining Made of stainless steel. Then the product model is: “BHJg-G inside/G +Ex d IIC Gb Ex tD A20 IP66.”

2. If the user has special needs, it must be specified at the time of ordering.
