BTL series

Explosion-proof gasketing tube

1. It is widely used in flammable and explosive gas environment such as oil exploitation, refining, chemical industry, offshore oil platform, oil tanker, etc. It is also used in flammable dust places such as military industry, port, grain storage and metal processing;

2. Applicable to Zone 1 and Zone 2 of explosive gas environment;

3. Applicable to IIB, IIC explosive gas environment;

4. Applicable to areas 21 and 22 of flammable dust environment;

5. Used in dangerous places in petroleum and chemical enterprises, as explosion-proof electrical equipment The prepared cable is directly introduced.

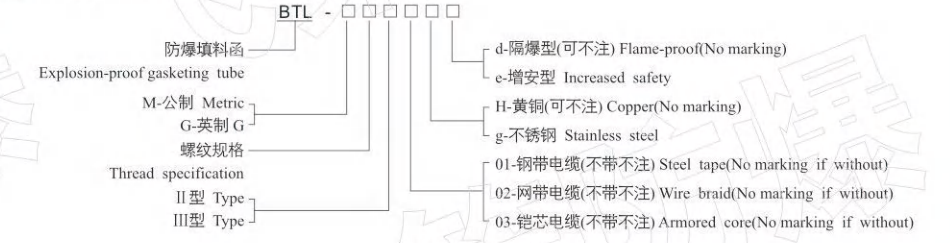

Model Implication

Features

1. According to the material, it is divided into brass and stainless steel;

2. A permanent “Ex” explosion-proof mark with laser printing on the surface;

3. The sealed cable is sealed by the stuffing cable of the stuffing box to achieve the purpose of explosion-proof;

5. The interface adopts the form of metric thread, NPT thread or G thread, which can be made according to the requirements of the user site;

6. Cable or steel pipe wiring.

7. Explosion-proof mark: Ex eIIGb Ex dIIGb

五十六十老熟女hd60,日日碰狠狠躁久久躁蜜桃,精品国产乱码久久久久久蜜桃网站 ,tube japanese

Products

BTL series

Explosion-proof gasketing tube

Model Implication

Features

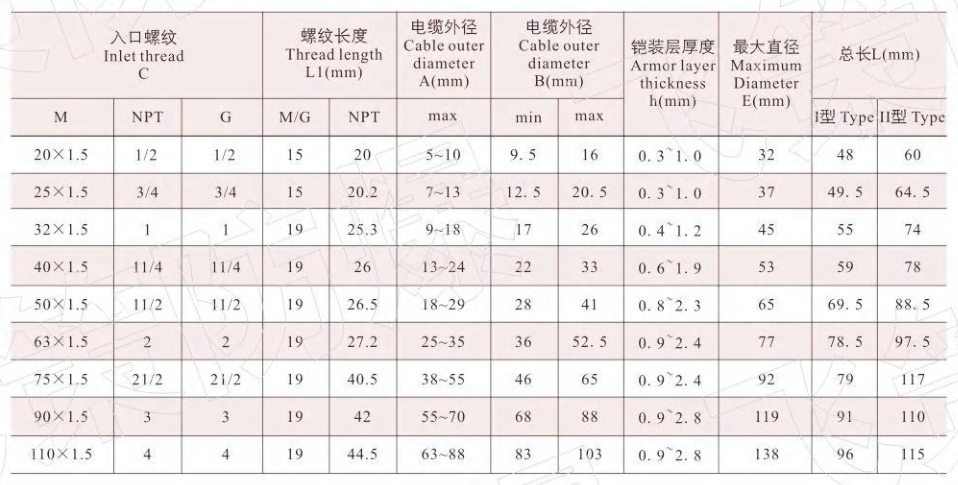

Main Technical Parameters
