FCD63 series

Explosion-proof high-efficiency energy-saving LED lights (smart dimming)

1. It is widely used in dangerous environments such as oil exploration, oil refining, chemical industry, military industry, offshore oil platforms, oil tankers and other places for general lighting and operation lighting;

2. Applicable to lighting energy-saving renovation projects and places where maintenance and replacement is difficult;

3. Applicable to Zone 1 and Zone 2 of explosive gas environment;

4. Applicable to IIA, IIB, IIC explosive gas environment;

5. Applicable to areas 21 and 22 of flammable dust environment;

6. Applicable to places with high protection requirements and humidity;


Model Implication


Features

1. Aluminum alloy die-casting shell, the surface is electrostatically sprayed, and the appearance is beautiful.

2. With intelligent dimming function, it can sense that the human body moves according to the set brightness after the human body moves within the monitored range.

3. Pure flameproof three-cavity composite structure, suitable for explosive gas and flammable dust environment, excellent in explosion-proof performance and photometric performance.

4. Stainless steel exposed fasteners with high corrosion resistance.

5. Tempered glass transparent cover. Atomized anti-glare design, able to withstand high energy impact, heat fusion, light transmittance up to 90%.

6. Advanced drive power technology, wide voltage input, with constant current, open circuit protection, short circuit protection, surge protection, etc.

7. A number of international brand LED modules, secondary optical distribution system designed by professional optical software, the light is even and soft, the light effect is ≥120lm/w, the color rendering is high, the life is long, and the environment is green.

8. The open heat-dissipating air duct effectively radiates the light source and power supply heat to ensure the service life of the lamp.

9. Advanced sealing technology ensures long-term operation in high-protection, humid environments.

10. Uniquely designed bracket adjustment mechanism that adjusts the illumination angle as required.

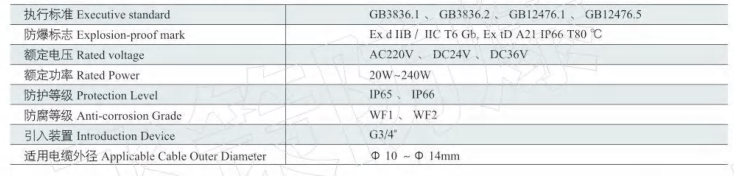

Main Technical Parameters


Order Note

1. Select one by one according to the rules in the meaning of the model specifications, and add the explosion-proof mark after the meaning of the model specification. The specific embodiment is: "product model - specification code + explosion-proof mark + order quantity". For example, if the IIC floodlight type dimming lamp 60W is required, the quantity is 20 sets, the order is: "Model: FCD63-Specification: F60Z+Ex d IIC T6 Gb+20".

2. For the selected installation form and accessories, see P431~P440 in the Lamp Selection Manual.

3. If there are special needs, please specify in the order.
